SPECIFICATIONS00000000000000 0

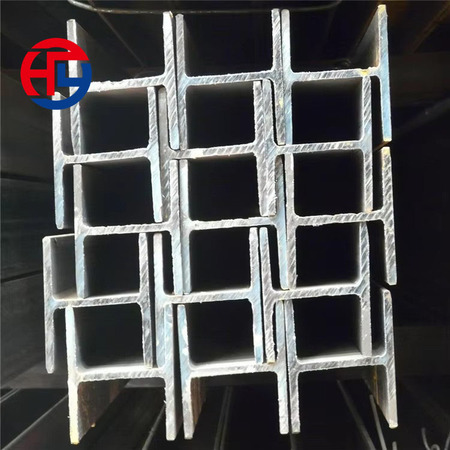

Product | H BEAM/ H SECTION |
Size | High(H) | 100mm-900mm |
Flange width(B) | 50mm-400mm |
Web thickness(t1) | 6mm-45mm |
Flange thickness(t2) | 8mm-70mm |
Length | 6-12m/pc or as your request. |
Standard | GB706-2008; ASTM A36; ASTM A572; ASTM A992; AS/NZS3679.1; EN10025-2; JIS G3192, etc. |
Material | SS400, Q235B,S235JR,Q345B, S355JR, A36 etc. |
Technique | Hot rolled & Welded |
Application | 1.Industrial structure of the steel structure bearing bracket.
2.Underground engineering steel pile and retaining structure.
3.Petrochemical and electric power and other industrial equipment structure
4.Large span steel bridge components
5.Ships, machinery manufacturing frame structure
6.The train, automobile, tractor beam bracket
7.Port of conveyor belt, high speed damper bracket |
Package | Standard seaworthy packing or as required |
Port of Shipment | Tianjin Port, China |
Date of Delivery | 7-15 days after received the deposit |
MOQ | 20T |
Production | 5000t/ month |
Payment | T/T, L/C etc. |
